Powerplant
Regulated PCP
|
Max Velocity
Up to 1,000 FPS (.177)
|
Fill Pressure
200 BAR / 2,900 PSI
|
1. Introduction to the Stoeger XM1 Platform
Pre-Charged Pneumatic (PCP) air rifles have established themselves as the leading technology for precision target shooting and small-game hunting due to their recoil-free firing cycle and extreme consistency. As airgun technology advances, shooter comfort, ergonomics, and modular adaptability have become primary factors for performance.

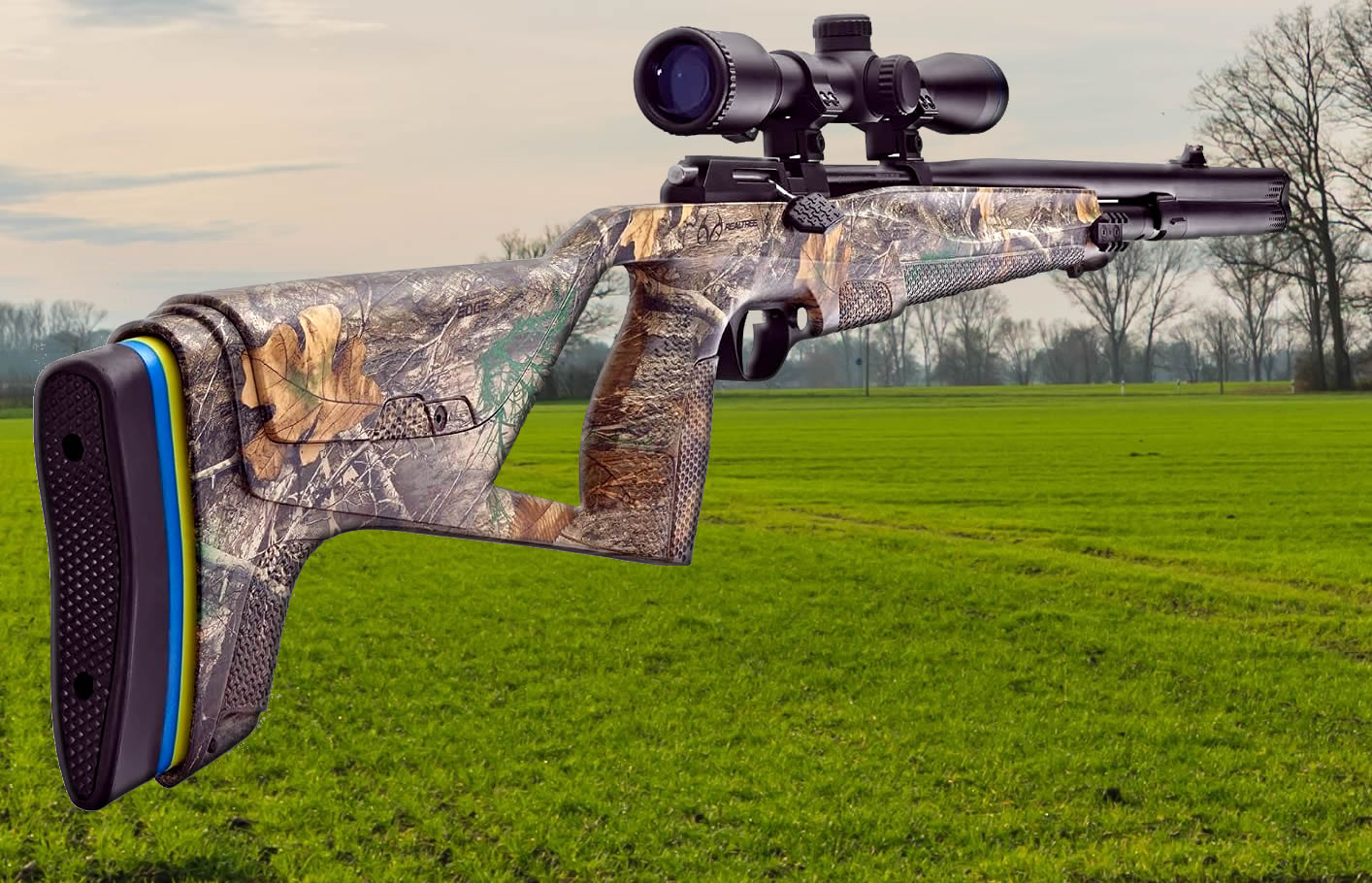

The Stoeger XM1 is a cutting-edge PCP air rifle engineered by Stoeger AIRGUNS (a member of the Beretta Holding Group). Distinguished by its RedDot Award-winning Italian design, the XM1 combines sleek aesthetic styling with high-end features such as an integrated internal pressure regulator, human-fit ergonomics (Human Tech Design), and a complete factory combo package including a 4×32 scope and rotary magazines.
2. Key Features of the Stoeger XM1
The Stoeger XM1 integrates several innovative technological advancements designed to enhance shooter comfort and performance:
- Human Tech Design Ergonomics: Features interchangeable pistol grips (blue and black) and a customizable cheek piece, allowing shooters to tailor the stock geometry to their posture.
- Integrated Pressure Regulator: Standard factory regulator ensures shot-to-shot velocity consistency, eliminating extreme velocity spreads across the shot string.
- Threag-Grip & Pro Adaptive Checkering: Provides a firm, tactile grip in dry or wet conditions across all firing positions.
- Bolt-Action System with Interchangeable Handles: Smooth bolt-action cycling with two distinct ergonomic bolt handle options included.
- Integrated Sound Moderator: Suppressed barrel shroud design dampens muzzle blast for quiet backyard plinking and stealthy hunting.
- Factory Combo Package: Includes a 4×32 mm scope, Picatinny side rails for accessories, two rotary magazines, and a single-shot tray.
3. Technical Data & Specifications
Below are the technical specifications for the Stoeger XM1 PCP air rifle combo:
| Specification Field | Technical Detail / Parameter |
|---|---|
| Action / Cocking | Bolt-action repeater / Pre-Charged Pneumatic (PCP) |
| Pressure System | Internally Regulated, 100 cc air cylinder |
| Maximum Fill Pressure | 200 BAR / 2,900 PSI (Quick-fill probe system) |
| Caliber Options | .177 (4.5 mm) or .22 (5.5 mm) |
| Magazine Capacity | 9-round rotary mag (.177) / 7-round rotary mag (.22) |
| Trigger System | Two-stage adjustable trigger (length of pull & weight) |
| Optics Package | Stoeger 4×32 Scope & Dovetail mounting rings included |
| Overall Length / Weight | 38.8 inches (986 mm) / approx. 5.6 lbs (2.5 kg) lightweight |
4. Caliber, Power Output & Effective Range
Caliber Configurations & Velocity
The Stoeger XM1 is produced in two versatile calibers:
- .177 Caliber (4.5 mm): Delivers muzzle velocities up to 1,000 FPS with lightweight pellets, ideal for target precision and flat trajectories.
- .22 Caliber (5.5 mm): Achieves muzzle velocities up to 800–900 FPS, delivering solid impact force for pest control and hunting.
Muzzle Energy & Regulated Performance
The .177 model produces approximately 14 to 18 Foot-Pounds of Energy (FPE), while the .22 model delivers 20 to 24 FPE. Thanks to the integrated internal regulator, the 100 cc air cylinder provides up to 30-35 highly consistent shots per fill within a tight velocity band.
Effective Maximum Range
With its rifled precision steel barrel and lightweight ergonomic design, the Stoeger XM1 consistently maintains sub-inch groupings at distances of 35 to 50 yards (32 to 45 meters), making it exceptionally effective for target shooting and field use.
5. Practical Recommendations & Usage Advice
- Air Filling Convenience: Operating at a moderate 200 BAR (2,900 PSI) with a 100 cc cylinder, the XM1 is one of the easiest PCP rifles to fill using a standard 3-stage high-pressure hand pump.
- Ergonomic Customization: Take advantage of the included modular grip pads and cheek risers to set up the rifle for your exact eye alignment and hand size.
- Ammunition Selection: For optimal grouping, use quality domed pellets such as JSB Exact Diabolo (8.44 gr for .177 or 15.89 gr for .22).
- Accessory Mounting: Utilize the included left/right Picatinny side rails to mount shooting lights or bipod legs without extra rail adapters.
6. Conclusion
The Stoeger XM1 PCP Air Rifle Combo brings high-end Italian design, modular ergonomics, and regulated performance into an accessible package. Lightweight, whisper-quiet, and incredibly comfortable to shoot, the XM1 is an outstanding option for target shooters and hunters looking for an entry-level PCP rifle with premium feature integration.
