Powerplant
Regulated PCP
|
Max Velocity
Up to 950 FPS (.22)
|
Fill Pressure
220 BAR / 3,200 PSI
|
1. Introduction to Tactical Chassis PCP Air Rifles
Pre-Charged Pneumatic (PCP) air rifles have evolved beyond traditional wooden sporter stocks into modular, precision-competition platforms. Tactical chassis PCP air rifles are specifically designed for Precision Rifle Series (PRS) airgun matches and long-range benchrest shooting, where rigidity, custom fitment, and accessory mounting options directly dictate performance downrange.

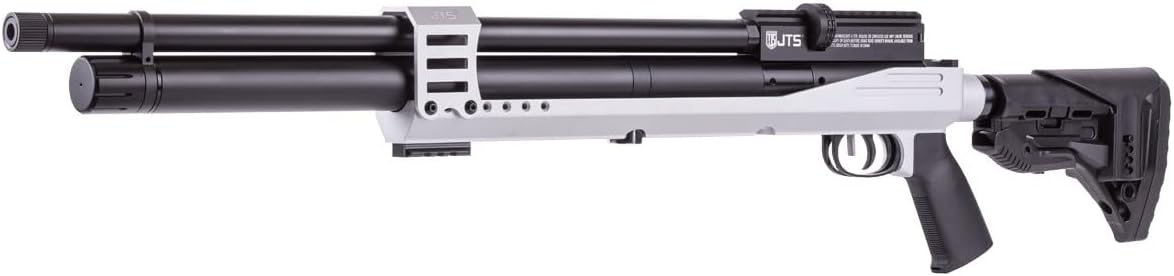

The JTS Airacuda PRS Max (Silver Finish) is JTS Group’s flagship entry into the competition-grade PCP segment. Built on a custom CNC-machined aluminum alloy chassis, it elevates the proven Airacuda Max internal architecture by offering AR-style ergonomics, extended mounting options, and an externally regulated air system. This combination brings competition-level stability and accuracy to shooters without requiring the exorbitant investment usually seen in custom target builds.
2. Key Features of the JTS Airacuda PRS Max
The Airacuda PRS Max Silver Edition blends modern tactical versatility with high-precision engineering:
- CNC-Machined Silver Aluminum Chassis: Ultra-rigid aluminum stock eliminates flex, providing exceptional stability for bipods, tripods, and benchrest setups.

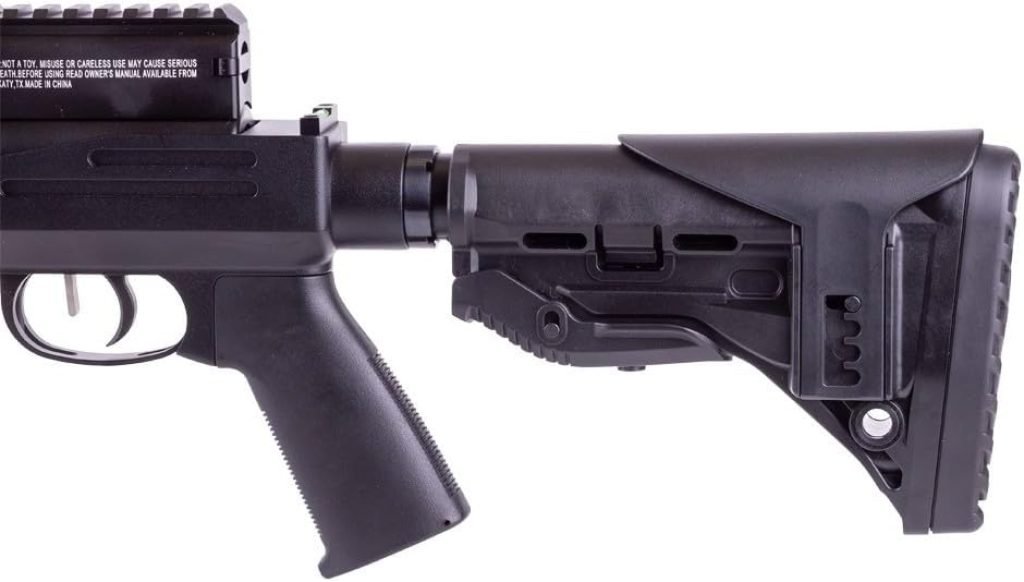

- Modular AR Compatibility: Equipped with an AR-style pistol grip and an adjustable buttstock featuring a height-adjustable cheek riser for custom fitment.
- Internal Precision Regulator: Regulates output air pressure shot-to-shot, minimizing velocity extreme spread (ES) across target strings.
- Extended Picatinny Rails: Features a full-length top rail for large optics and an under-forend rail for rapid attachment of bipods and competition accessories.

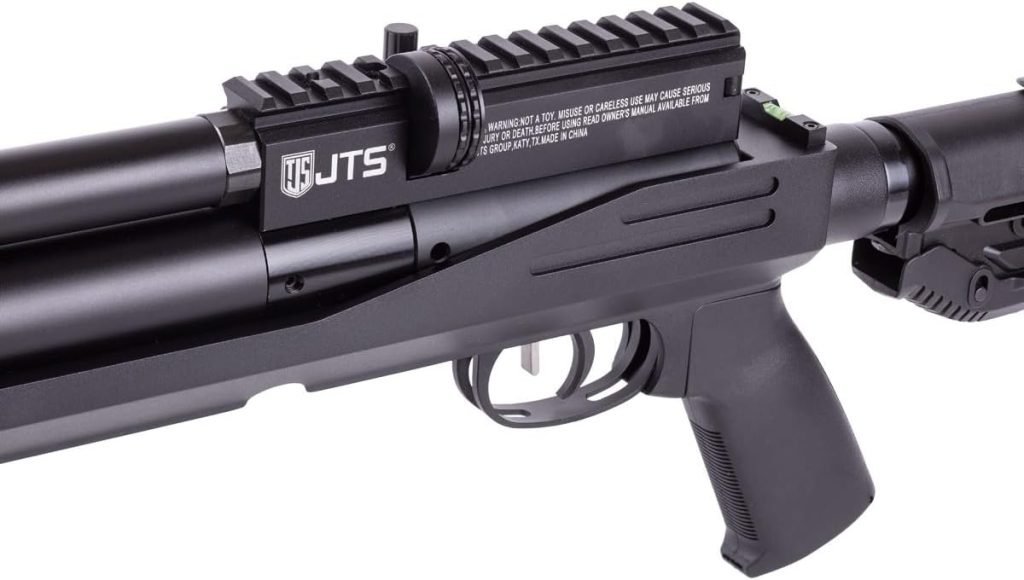

- Smooth Sidelever Cocking: Forward-placed sidelever allows ultra-fast cycling without breaking your cheek weld or sight picture.

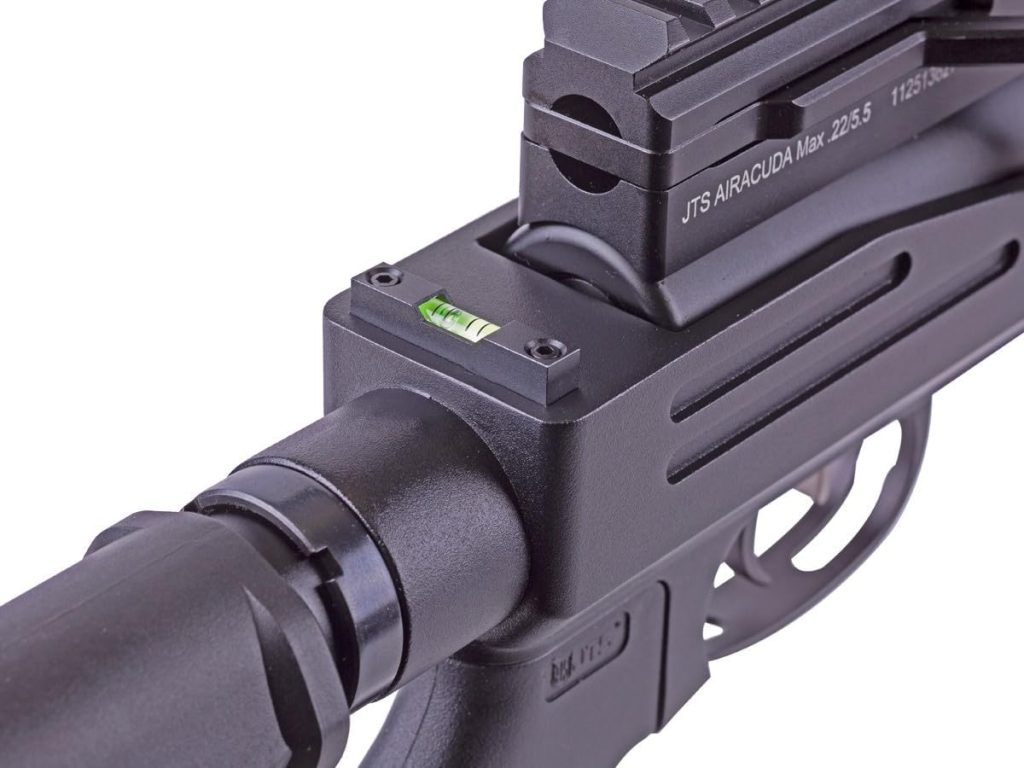

- Built-In Bubble Level & Dual Gauges: Includes an integrated anti-cant bubble level near the breech and dual pressure gauges to monitor reservoir fill and regulated output.
3. Technical Data & Specifications
Below are the technical specifications for the JTS Airacuda PRS Max Silver PCP air rifle:
| Specification Field | Technical Detail / Parameter |
|---|---|
| Action / Cocking | Regulated PCP, Sidelever Repeater |
| Chassis Material | Custom Precision Aluminum Alloy (Silver Finish) |
| Air Cylinder Capacity | 220 cc air reservoir |
| Maximum Operating Pressure | 220 BAR / 3,200 PSI |
| Barrel Thread / Muzzle | Rifled barrel with 1/2 UNF threads for suppressor attachment |
| Magazine Capacity | 10 rounds (.22 Caliber) – Includes two metal magazines |
| Trigger System | Two-stage fully adjustable match trigger |
| Overall Length / Weight | 38.8″ to 41.2″ (Adjustable stock) / 8.5 lbs (3.85 kg) |
4. Caliber, Power Output & Effective Range
Caliber & Muzzle Velocity
This .22 Caliber (5.5 mm) configuration generates speeds up to 950 FPS with standard weight lead pellets and heavy precision pellets.
Power Output & Shot Count
In .22 caliber, the regulated valve produces approximately 32 to 38 Foot-Pounds of Energy (FPE) (43 to 51 Joules) depending on pellet mass. Thanks to its regulated 220 cc cylinder, shooters can expect up to 40 consistent, regulated shots per fill at peak power before needing a top-off.
Effective Maximum Range
Engineered for long-range target work, the rigid aluminum chassis paired with a regulated shot string delivers tight sub-MOA groupings at 50 to 75 yards (45 to 68 meters). When using heavy domed pellets or airgun slugs, effective target plinking can easily extend out to 100 yards.
5. Practical Recommendations & Usage Advice
- Target Shooting Equipment: Given its weight (8.5 lbs bare), this rifle is designed for shooting supported. Pair it with a sturdy Picatinny bipod (like an Atlas or Harris style) and a high-magnification optic (e.g., 4-16×44 or 6-24×50).
- Ammunition Recommendation: Tests show optimum precision with heavy .22 pellets, such as the JSB Exact Jumbo Heavy (18.13 gr) or H&N Baracuda Match (21.14 gr).
- Air Filling Protocol: Fill to 3,200 PSI using a PCP electric compressor or high-pressure SCUBA tank equipped with a quick-disconnect Foster fitting.
- Suppressor Attachment: The 1/2 UNF threaded muzzle accepts aftermarket airgun moderators for shooters seeking silent operation.
6. Conclusion
The JTS Airacuda PRS Max (Silver, .22 Caliber) is a remarkable entry into competition-style PCP shooting. By housing an internally regulated action inside a striking, modular aluminum alloy chassis, JTS delivers the rigidity, adjustability, and shot consistency required for PRS and precision target shooting. For shooters who desire a match-ready rifle with modern tactical flair, the PRS Max Silver stands as an outstanding choice.
